Category: Automatic Inflation Machine, Machines

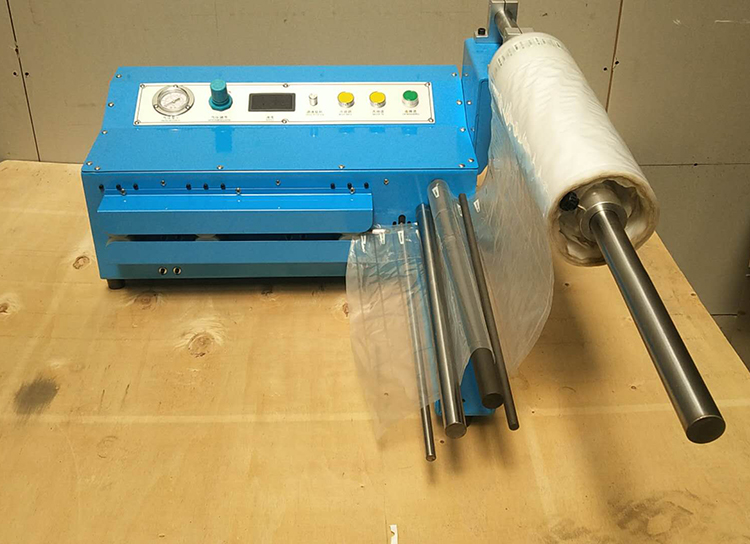

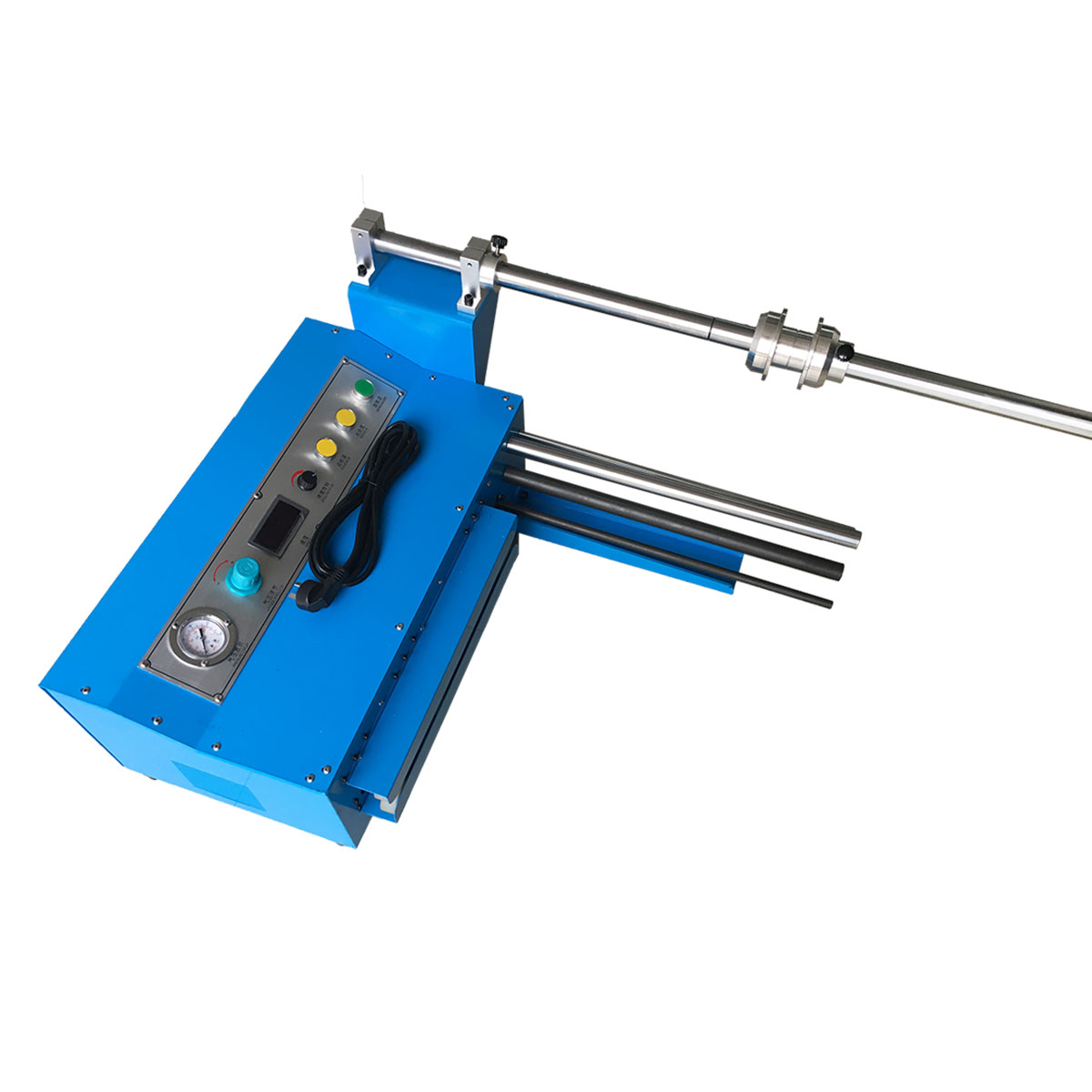

CQR-30 – Automatic Column Film Gas Filling Machine is a fully automatic gas filling machine for one-way valve air cushion film that greatly reduce the labor intensity of packaging workers, improving packaging efficiency product.


  • DC drive system, longer motor life.
  • With DC governor, feed rate continuously adjustable.
  • Maximum operating speed of 30 meters / minute.
  • Small footprint. It occupies 0.3 square meters only!


  1. Leading Time: Within 20 days for less than 50 PCS, 40days for less than 100 PCS. 75 days for 200 PCS.
  2. Payment terms: 30% againstthe contract, 70% before delivery.
  3. Payment method: L/C, T/T.
  4. The quotation is valid for 30 days from the quotation date.
  5. Machine warranty period: six months.
  6. Service scope:
  • During the warranty period, free repairing, free spare parts. As long as clients pay transportation charges.
  • In case of expired of the warranty period, the clients pays transportation charges, man-hour cost, as well as spare parts cost.
  • Lots of relevantequipment, accessories, spare parts can be provided.
Description Parameter
Maximum Operating Speed 30 meters / minute (depend on film width)
 Maximum Film Width 650 MM
Maximum Film Length 700 Meters
Air Supply 0.04m3/min @ 0.5 M Pa  (depend on film width)
Power Supply AC220 V/110 V, 50 / 60 Hz 140W
Dimension 650X480X380 MM
Weight 50 Kg
Film Type With one-way valve air cushion film
