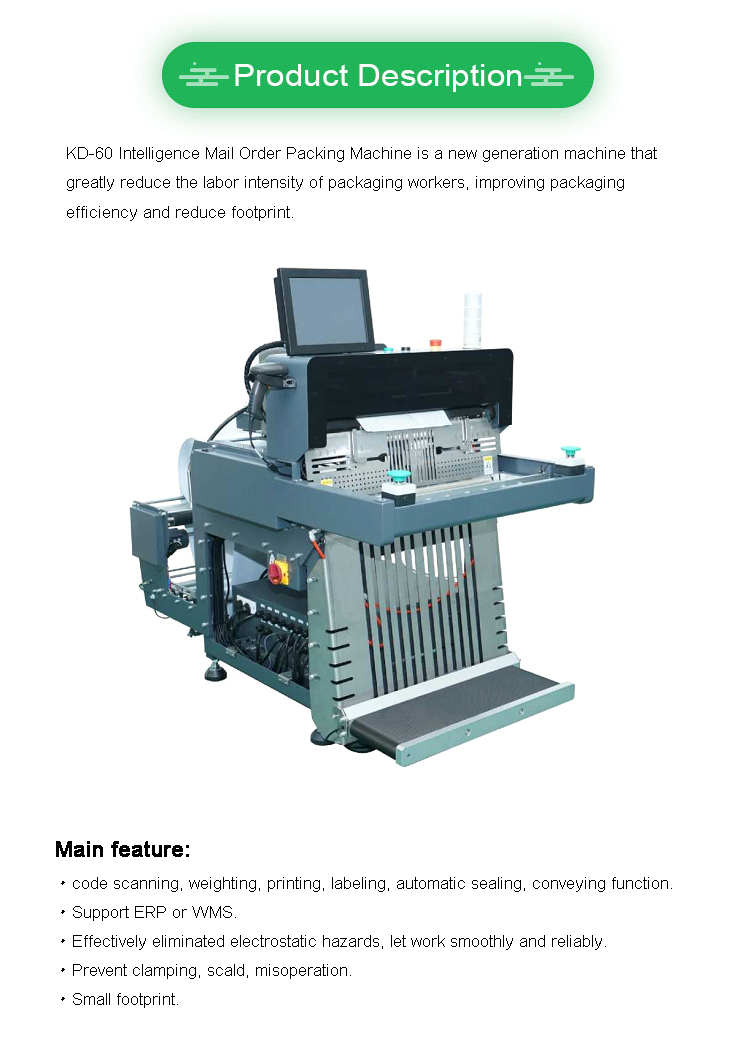

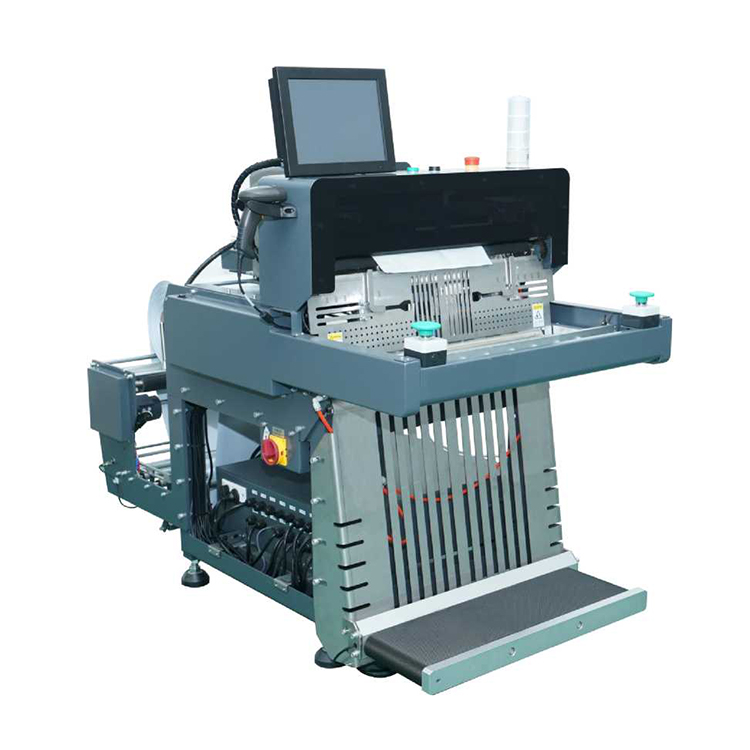

KD-60 Intelligence Mail Order Packing Machine is a new generation machine that greatly reduce the labor intensity of packaging workers, improving packaging efficiency and reduce footprint.
Main feature:

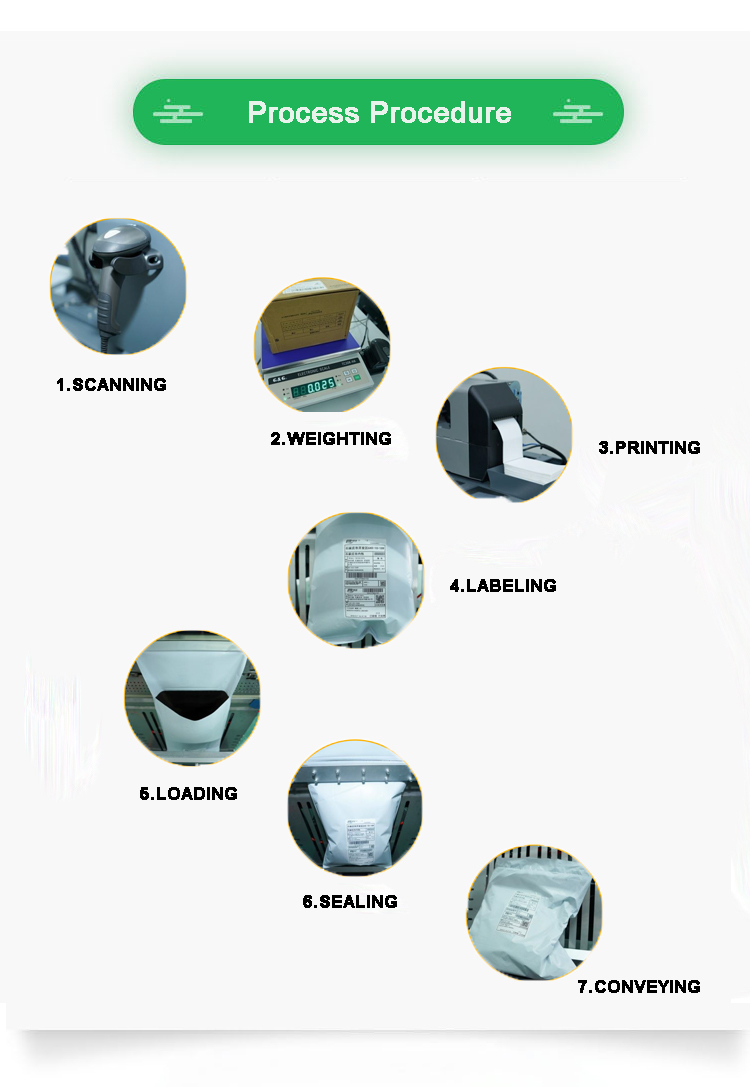

- With code scanning, weighting, printing, labeling,automatic sealing, conveying function.
- Support ERP or WMS.
- Effectively eliminated electrostatic hazards, let work smoothly and reliably.
- Prevent clamping, scald, misoperation.
- Small footprint. It occupies 2 square meters only!
NOTE:
- Delivery terms: Within 30 working days.
- Payment terms: 30% againstthe contract, 70% before delivery.
- Payment method: L/C, T/T.
- The quotation is valid for 30 days from the quotation date.
- Machine warranty period: ONEyear.
- Service scope:
- First times on siteInstallation, guidance and commissioning; as long as the clients pays man-hour cost, the visa fee, the air tickets charge , and accommodation
- During the warranty period, free spare parts. Customers pay man-hour cost as long as the clients pays the visa fee, the air tickets charge , and accommodation if they need on site service.
- In case of expired the warranty period, the clients pays man-hour cost, spare parts cost as well as the visa fee, the air tickets charge , and accommodation if they need on site service.
- Lots of relevantequipment, accessories, spare parts can be provided.
| Description | Parameter |
| Bag Specification | Poly Mailer Film Thickness : 0.04-0.08mm
Width : 200-560 MM Length : 350-800 MM |
| Label Specification | Width: 100mm / 180mm /Customize |
| Speed | Max 650 Pkg / H |
| Man-machine interface | Mouse，Touch Screen，Virtual Keyboard |
| Screen | 12” LCD |
| External Communication | Ethernet, USB, RS232 |
| Pneumatic Supply | 0.025m3/min @ 5Kg/cm3 |
| Power Supply | AC220 V/110 V 50 / 60 Hz 1500W |
| Dimension | L : 1580 MM W : 850 MM H : 1420 MM |
| Weight | 200Kg |
| Material Type | Mail order fulfillment film / Poly mailer in rolls 40 – 80 micron |
